Termék részletek

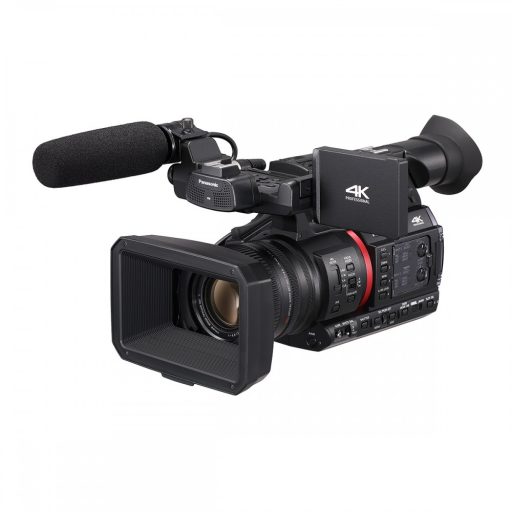

Panasonic AG-CX350 4K LIVE Streaming kamera
10bit, Live Stream, NDI HX opció
1" MOS képérzékelő, 5 tengelye optikai stabilizálás
20x optikai (F2.8-F4.5) , 32x intelligens zoom, 24,5mm nagylátószög
A képen látható mikrofon nem tartozék!
UHD 4K, 1080p, Variable Frame Rate 1-60fps)
MOV és AVCHD, 4:2:2 és 4:2:0, 8 bit és 10 bit
IP vezérlés, NDI HX - jelátvitel és vezérlés Ethernet csatlakozón keresztül - opció!
opcionális WiFi stickkel kameravezérlés Android és iOs tablettel vagy okostelefonnal
2x memóriakártya foglalat, HLG felvétel
3.2" LCD kereső, OLED szemkagylós kereső
Zoom, Focus, Iris kézi gyűrű
első XLR mikrofon csatlakozás első hangerőszabályzóval
TC In/Out, 3G-SDI, HDMI kimenet
USB 3.0 Device, USB 2.0 Host, LAN Port
vezetékes Focus és Zoom vezérelhetőség (pl. Manfrotto MVR901ECLA)
opcionális RTMP/RTSP live streaming
1" MOS képérzékelő, 5 tengelye optikai stabilizálás
20x optikai (F2.8-F4.5) , 32x intelligens zoom, 24,5mm nagylátószög
A képen látható mikrofon nem tartozék!
UHD 4K, 1080p, Variable Frame Rate 1-60fps)
MOV és AVCHD, 4:2:2 és 4:2:0, 8 bit és 10 bit
IP vezérlés, NDI HX - jelátvitel és vezérlés Ethernet csatlakozón keresztül - opció!
opcionális WiFi stickkel kameravezérlés Android és iOs tablettel vagy okostelefonnal
2x memóriakártya foglalat, HLG felvétel
3.2" LCD kereső, OLED szemkagylós kereső
Zoom, Focus, Iris kézi gyűrű
első XLR mikrofon csatlakozás első hangerőszabályzóval
TC In/Out, 3G-SDI, HDMI kimenet
USB 3.0 Device, USB 2.0 Host, LAN Port
vezetékes Focus és Zoom vezérelhetőség (pl. Manfrotto MVR901ECLA)
opcionális RTMP/RTSP live streaming
-
műszaki adatok:
General
Power: DC 7.28 V (when the battery is used)
DC 12 V (when the AC adaptor is used)
Power Consumption: 17 W (when the LCD monitor is used)
11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10 % to 80 % (no condensation)
Weight: Body: approx. 1.9 kg (4.19 lb)
(body only, excluding lens hood, battery, and accessories)
Shooting: approx. 2.3 kg (5.07 lb)
(including lens hood, battery, and microphone holder)
Dimensions: 180 mm (W) x 173 mm (H) x 311 mm (D)
(7-1/8 inches x 6-13/16 inches x 12-1/4 inches)
(excluding protrusion and eye cup)
Camera Unit
Pickup Device: 1.0-type (effective size) MOS solid state image sensor
Effective Pixels: 15,030,000 pixel
Lens: Optical image stabilizer lens, optical 20x motorized zoom
F value: F2.8 to F4.5
Focal length: f=8.8 mm to 176 mm
35 mm equivalent: 24.5 mm to 490 mm
Filter Diameter: 67 mm
ND Filter: Clear, 1/4, 1/16, 1/64
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.):
Approx. 10 cm (W), 1.0 m (T) from the front lens
Gain Setting: L/M/H selector switch
–3 dB to 18 dB (Adjustable in 1 dB steps)
24dB, 30 dB, 36 dB switched
(when assigning [S. GAIN] to the USER button)
Color Temperature Setting: ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed: When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode:
1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 29.97p mode:
1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 23.98p mode:
1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode:
1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 25p mode:
1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
Shutter Speed:
(Slow Shutter) When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
• 29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
• 23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
• 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
Shutter Speed:
(Synchro Scan) When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
• 29.97p mode: 1/30.0 sec. to 1/7200 sec.
• 23.98p mode: 1/24.0 sec. to 1/7200 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/50.0 sec. to 1/7200 sec.
• 25p mode: 1/25.0 sec. to 1/7200 sec.
Shutter Open Angle: 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
VFR Recording Frame Rate: When [SYSTEM MODE] = 59.94 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
When [SYSTEM MODE] = 50.00 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)
Super Slow Recording: When [SYSTEM MODE] = 59.94 Hz
1920 x 1080 (FHD): shooting frame rate 120 fps
When [SYSTEM MODE] = 50.00 Hz
1920 x 1080 (FHD): shooting frame rate 100 fps
Sensitivity: When [HIGH SENS.] mode
F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
Horizontal Resolution: 2000 TV or higher (UHD: center)
1000 TV or higher (FHD: center)
i.Zoom: ×32 (FHD), ×24 (UHD)
Digital Zoom: ×2/×5/×10
Lens Hood: Hood with lens cover
Memory Card Recorder
Recording Media: SDHC memory card (4 GB to 32 GB),
SDXC memory card (32 GB to 128 GB)
UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported
microP2 card (A series, B series)
Please see back cover for the “Available Memory Card” table.
Recording Slot: microP2/SDXC UHS-II card slot x 2
Recording Pixels: 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
System Frequency: 59.94 Hz/50.00 Hz
Recording File Format: MOV (AVC), MOV (HEVC), AVCHD
Recording Format: Please see page 4 for the “Recording Format” table.
Recording Time: Please see back cover for the “Recording Time” table.
2 Slot Functions: Relay Rec, Simultaneous Rec, Background Rec
Special Recording Functions: Pre Rec, Interval Rec, Time Stamp
Digital Video
Quantization: MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
AVCHD: 4:2:0 8 bit
Video Compression Format: H.264/MPEG-4 AVC High Profile
H.265/MPEG-H HEVC Main10 Profile
Digital Audio
Recording Audio Signal: MOV: 48 kHz/24 bit, 2 ch, Linear PCM
AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
Headroom: 12 dB/18 dB/20 dB switchable (menu)
Live Streaming
Video Compression Format: H.264/MPEG-4 AVC Main Profile, High Profile
Audio Compression Format: AAC-LC
Network Protocol: RTSP/RTP/RTMP
Video Output
SDI OUT: BNC x 1, SDI REC REMOTE supported
HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit):
• 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
• 1280 × 720: 59.94p, 50p
• 720 × 480: 59.94i • 720 × 576: 50i
HDMI OUT : HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
Output format (4:2:2 10 bit):
• 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
• 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
• 1280 × 720: 59.94p, 50p
• 720 × 480: 59.94p • 720 × 576: 50p
VIDEO OUT: 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω
Audio Input/Output
Built-in Microphone: Stereo microphone
Input 1/2: XLR (3-pin) x 2 (INPUT1, INPUT2)
Input high impedance, LINE/MIC/MIC+48V (switchable SW)
MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu)
LINE: +4 dBu/0 dBu (switchable menu)
SDI OUT: Linear PCM 2 ch
HDMI OUT: Linear PCM 2 ch
Headphone: 3.5 mm diameter stereo mini jack x 1
AV OUT: 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
Speaker: 20 mm diameter, round x 1
Other Input/Output
TC IN/OUT: BNC x 1,
Used as the input and output terminals (switchable menu)
Input: 1.0 V to 4.0 V [p-p] 10 KΩ
Output: 2.0 V ± 0.5 V [p-p] low impedance
REMOTE: 2.5 mm diameter super mini jack
LAN: RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
USB 2.0 HOST: Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
USB 3.0 DEVICE: USB 3.1 GEN1 Type-C, USB Mass storage function
No USB bus power function
DC IN 12V: DC 12 V EIAJ Type 4
Monitor/Viewfinder
LCD Monitor: 3.5 type TFTLCD color monitor (3:2),
approx. 1,620,000 dots, Touch panel
video display (16: 9) area: Approx. 1,370,000 dots
Viewfinder: 0.39 type OLED (organic EL display), approx. 2,360,000 dots,
video display (16: 9) area: approx. 1,770,000 dots
Included Accessories
Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions (Items marked by an asterisk (*) come already attached to the camera)
Akkumulátortöltő és váltóáramú kábel
Hálózati adapter
markolatszíj
Mikrofontartó Csavarkészlet
a mikrofontartóhoz
Mikrofontartó Adapter
lencsevédő burkolat (a kameraházhoz rögzítve)
-
Szállítási idő Rendelésre!Cikkszám ag_cx350
