Monacor ARM-880 PA mátrix hangközpont

Audio Matrix System
The system ARM-880... from MONACOR is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.
The audio matrix router ARM-880 is the centrepiece of the system. For operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1, ARM-880WP2 and ARM-880WP3 for remote control of ARM-880 or with additional local inputs for the respective zone are available at option.
With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for various alarm signals and a local microphone are available.
Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

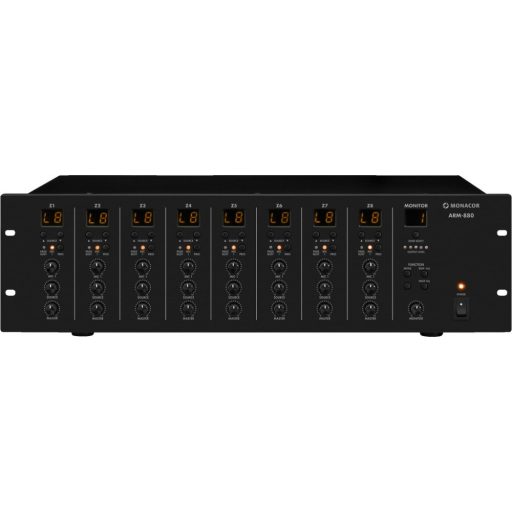

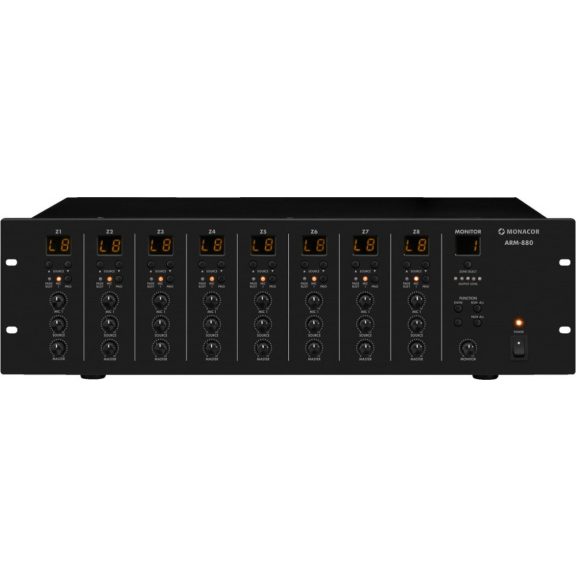

Audio matrix router
8 audio inputs and 8 audio outputs
Inputs 1-4, line, with gain control
Inputs 5-8, switchable line/mic
2 zone paging microphones ARM-880RC and 1 local microphone (for all zones) can be connected
1 additional audio input for each zone, non-routable, with gain control
8 wall modules ARM-880WP... can be connected as remote control
Extendable to up to 32 zones
Microphone, music and master volume controls for each zone
2-way tone control for each zone
Priority management
Emergency announcement with priority for each zone, even when extended
3 different alarm signals
7-segment LED display for each zone
Clipping indicator
Monitoring function with built-in speaker
482 mm (19") rack installation
Mains operation or 24 V emergency power operation
