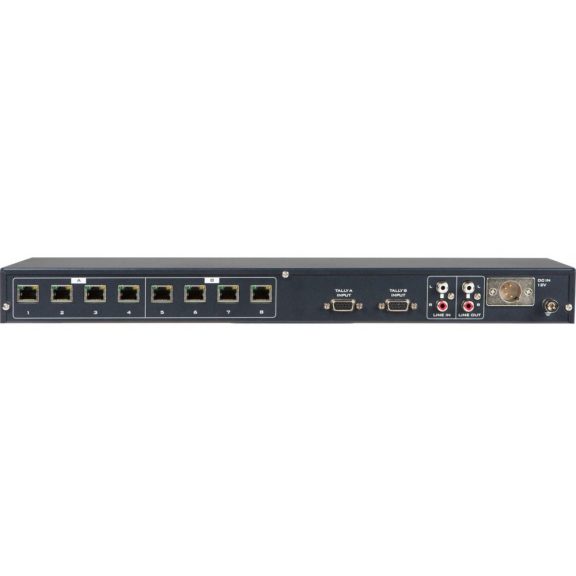

Datavideo ITC-300 Digitális Intercom / utasító szett 4 adóval

ITC-300 Digital Intercom System
Power
DC 12V, 3A

Tally
2 x 15 Pin D-Sub Female Sockets
for Tally A and Tally B

MIC / Headset
1 x 3.5mm Stereo Jack Socket
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND)

Headphone
1 x 1/4" (6.3mm) Stereo Headphone Socket
(Tip: Phone、Ring: Phone、Sleeve: GND)

Light Socket (DC 12 V)
Light Power Consumption: +5 V / 500 mA

Microphone
3 Pin XLR / 1/4” (6.3mm) Socket x 1
Switchable Condenser / Dynamic
Input Microphone Level -67dB
PIN1:N/A,PIN2:MIC,PIN3:GND

Frequency Response
300 Hz-7 KHz, < +/-3dB

THD
< 0.1% @1KHz

S/N
>70dB

Built-in Speaker
3W
Speaker is mute when headphones or mic / headset are connected to the ITC-300

Operating Range
Up to 100m between Base Station and Slave

Operating Temp. Range
0~40 °C

Dimension (LxWxH)
440 x 126 x 44mm

Weight
1.9 kg

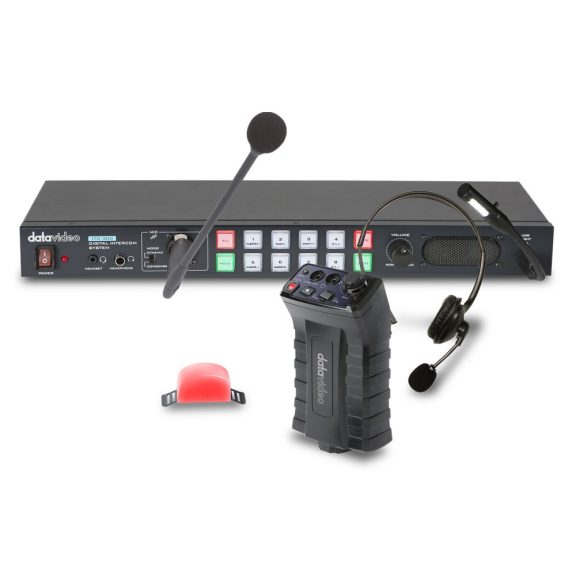

What's in the Box
1 x ITC-300 Base Unit

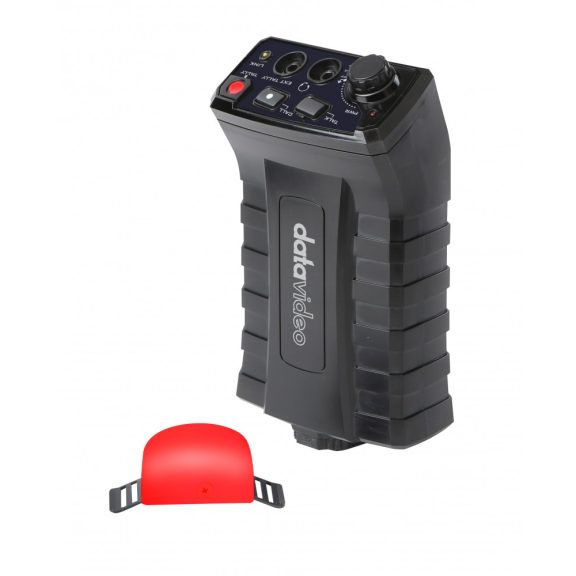

4 x ITC-300SL Belt Pack
4 x Ethernet Cable (70ft. / 21m)
4 x Earphone Cable
4 x Headset with microphone
1 x Gooseneck Microphone
4 x Tally LED Indicator
4 x Velcro
1 x USB Gooseneck Light
1 x Adaptor + AC Cord
2 x Rack Ears for mounting
1 x Thank You Card
